Quick answer: How does industrial water recycling work in a manufacturing plant?
Industrial water recycling treats a plant’s used process water, such as parts-washer rinses, spent coolant, and plating or cleaning baths, so that most of it can be reused in the process instead of being hauled away or sent to the sewer. The right technology depends on the stream. Oil-water separators and ultrafiltration remove oils and solids, reverse osmosis removes dissolved salts, and vacuum evaporation splits hard-to-treat streams into clean distillate and a small concentrate. PRAB customers in metalworking and electronics have recovered between 70% and about 95% of their water for reuse, depending on the stream.
Most manufacturers watch their coolant bill closely and their water bill barely at all. Water feels cheap until you add up what happens after it is used: drums and totes of rinse water hauled away, surcharges from the local sewer authority, a permit that tightens at renewal, and fresh water bought to refill the same tanks next week.
The WateReuse Association names cost savings, water security, and environmental compliance among the main reasons industrial facilities adopt reuse [1]. For a machining or metal finishing plant, the cost case usually comes first. Every gallon recovered is a gallon you don’t buy or pay to dispose of.
The mistake is treating all of that water as one problem. It isn’t.

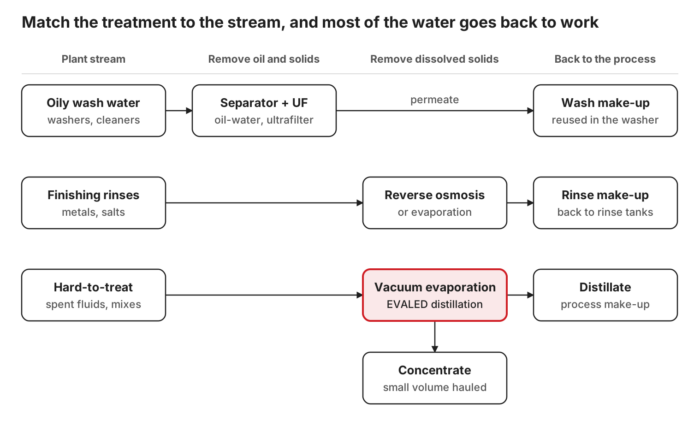

A plant’s water usage usually comes from a few distinct sources, and each requires different treatment.
Oily wash water rarely requires the same treatment as a plating rinse, and the hardest streams are sent to evaporation.
Parts washers and alkaline cleaners load water with oil, grease, and fine solids. An oil-water separator removes free oil, and ultrafiltration removes emulsified oil and solids, allowing the permeate to return to the washer. Finishing and plating rinses carry dissolved metals and salts that filters can’t catch, which is where reverse osmosis comes in. Spent fluids and mixed streams that defeat membranes go to vacuum evaporation, which boils water off at low temperature and leaves a small concentrate behind.
Whatever can’t be reused gets treated for release. That is where pH adjustment fits: it is a compliance step, not a recycling step.
| Technology | Removes | Best for | Watch-outs |
|---|---|---|---|
| Oil-water separator | Free-floating oil, settleable solids | First step on oily wash water | Won’t break emulsions on its own |
| Ultrafiltration | Emulsified oil, suspended solids | Washer and cleaner recycling | Doesn’t remove dissolved salts |
| Reverse osmosis | Dissolved salts and metals | Rinse water polishing, incoming water | Needs oil and solids removed first, or membranes foul |
| EVALED vacuum evaporation | Nearly everything but water | Hard-to-treat and mixed streams | Uses energy; heat pump and MVR designs cut it sharply |
| pH adjustment | Acidity or alkalinity out of range | Meeting release limits | Prepares water to leave, not to be reused |
Energy is the honest trade-off with evaporation. PRAB’s published figures put mechanical vapor recompression units at roughly 30 to 50 kWh per ton of water treated and heat pump units at about 150 kWh per ton, against several hundred kWh per ton of hot water or steam for basic designs [2]. That spread is why choosing the right evaporator type matters as much as choosing evaporation at all.
| Customer | Stream | Technology | Result | Source |
|---|---|---|---|---|
| Bendix Commercial Vehicle Systems | Alkaline cleaner and rinse water | EVALED heat pump evaporator | 81% of wastewater reused as wash and rinse make-up | [3] |
| European engine plant | Parts-cleaning baths, 30 tons a day | Oil separator, EVALED MVR, ultrafiltration | About 95% of water reused | [4] |
| Memory storage manufacturer | Nickel-bearing acid pickling rinses | EVALED vacuum evaporator | 70% to 90% of distillate recovered and reused | [5] |
| Pharmaceutical research lab | About 4 tons of effluent a day | EVALED vacuum evaporator | Over 90% of water recovered for reuse | [6] |
The common thread: each plant tested its water first, then matched the technology to what was actually in it.
Zero liquid discharge means no process water leaves the plant as liquid. It is achievable, and evaporation is usually how plants get there. But it is not always the right goal. The last few percent of water recovery often cost the most, and a plant that reuses 90% of its water and releases a small, compliant remainder may be better off than one that pays to eliminate it entirely.
We would rather help you find the point where the savings stop paying for the equipment than sell you a ZLD system you don’t need.
PRAB starts every water project with a water analysis and a goals assessment [7]. You can speed that up by gathering four things:
Then send a sample through PRAB’s Fluid Testing program. It tells you what is in the water before anyone recommends equipment.
Talk to a PRAB water treatment specialist
Wastewater treatment prepares used water to meet permit limits before leaving the plant. Industrial water recycling treats it to a quality suitable for reuse in the process. Most plants do some of each: they recycle the streams that are worth recovering and treat the remainder for release.
Yes. Bendix Commercial Vehicle Systems reuses 81% of its alkaline cleaner and rinse water as make-up for its wash and rinse tanks [3]. A European engine plant reuses about 95% of its parts-cleaning water after evaporation and ultrafiltration [4].
No. Vacuum evaporation is a technology; zero liquid discharge is a goal. Evaporation is often the step that makes ZLD possible, but many plants use it to recover most of their water and still release a small treated remainder.
It depends on the design. PRAB’s published figures run from about 30 to 50 kWh per ton of water for mechanical vapor recompression units to about 150 kWh per ton for heat pump units [2].
Yes. Every project starts with a water analysis and goals assessment, and the Fluid Testing program analyzes your actual samples [7].
